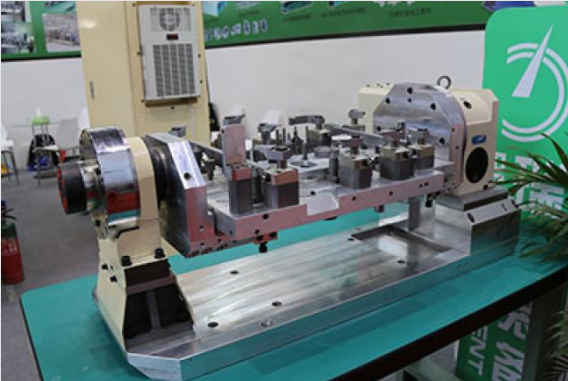

Automatic hydraulic A-axis jig for cylinder head cover

Product Advantages Technical Parameter Manufactured Product

1.Using aero-aluminium fixture plate to achieve lightweight design concept;

2. Hydraulic multi-point automatic clamping system increases the rigidity of the fixture;

3. Using auxiliary support to control the processing deformation;

4. The air tightness detection ensures the accuracy of the positioning plane;

5. No tube connection in the oil circuit of the plate reduces chip accumulation;

6. 360° rotation of the A-axis makes multi-directional processing become possible;

7. Bracket can withdrawal the workpiece automatically from the positioning pin after processing;

8. Error proofing and pre-directed designs  avoid Injuring the workpiece.
